Bag-in-Box Cartoners

The Flex 1 horizontal cartoning machine offers greatly improved efficiency and production. Triangle’s bag-in-box cartoner is designed to be paired with current generation high-speed continuous motion VFFS machines like the Triangle X-Series and offers loading and indexing speeds up to 100 cartons per minute to perfectly match the VFFS output for most bag-in-box applications.

Enjoy greater flexibility, lower maintenance, reduced downtime and a compact footprint. Changeover is quick and simple – achieve changeover to full production in less than 15 minutes. In addition, our new automatic changeover option offers simple, push-button capability for fast, repeatable changeovers.

Our Automatic Changeover Wizard offers easy, fast and repeatable carton size changeovers with just the push of a button. Benefits include ease of use, improved efficiencies, reduced product waste and less time required for downtime and training. The Changeover Wizard is an ideal solution for cereal, powders, baking mix and grain applications, as well as for contract packagers and other companies running multiple carton sizes.

triangle

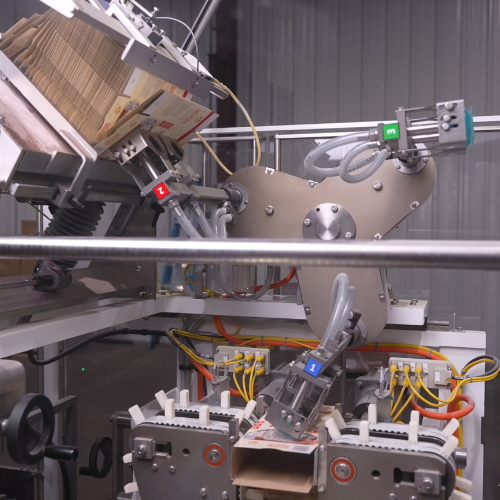

bag-in-box-f-b

Features and Benefits

  • Run multiple carton sizes with fast, tool-less changeovers and no change parts
  • Achieve changeover to full production in less than 15 minutes
  • Automatic Changeover Wizard offers fast, repeatable changeovers of all three dimensions in only five minutes
  • Gentle product handling
  • Servo drives for intermittent motion control — no bagger sync required
  • Single, twin-, and triple-pack bag-in-box capability
  • Multipack stacking capability
  • Compact footprint
  • Allen-Bradley ControlLogix
  • A-B PowerFlex AC Drives
  • Optional auto changeover feature for fast, repeatable changeovers of all three dimensions
  • Full-surface flap plows
  • PanelView color touchscreen display
  • Sanitary frame construction
  • Painted frame or washdown construction
  • VPN access for remote diagnostics and upgrades
triangle

Bag-in-Box Cartoner Specifications

Max Speed Up to 100 cartons/min
Max Carton Size 10"L x 7"W x 14"D
Min Carton Size 4"L x 1.25"W x 6"D
Footprint 17.5'L x 8.5'W
PLC Rockwell
Connection Ethernet
